3.19 Understanding Pedigrees: A* Genetics for iGCSE

Sometimes genetics problems are based around a pedigree diagram.  These diagrams show the phenotypes of individuals over several generations and allow deductions to be made about certain individuals phenotypes.  Often pedigrees are used to show the inheritance of a particular disease in a family.

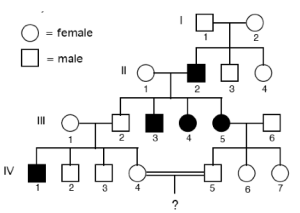

You can see that circles in the pedigree represent females, squares represent males.  If the symbol is filled in, then the person suffers from the disease.  Empty symbols represent people who do not have the disease.

Have a look at the pedigree above?  What does this tell you about the disease?

Well the first and most obvious thing is that this disease is caused by a recessive allele, h.

If you see two people who don’t have the disease producing one or more children who do, then this must be a genetic disease caused by a recessive allele.  In the top generation, parents 1 and 2 do not have the disease, but they have three children 2,3,4 one of whom has the disease.

What does this tell us about the genotype of parents 1 and 2 in generation I?  Well if neither have the disease and they have a child who does, both 1 and 2 in the top generation must be heterozygous – Hh

Anyone with the disease must be homozygous recessive hh.

Have a look at generation II in the diagram above?

The man, number 2, who is a sufferer and so genotype hh marries woman 1 who does not have the disease.  They produce 4 children, three with the disease and one without.  What must the genotype of the woman 1 be?  Well she must be heterozygous Hh.  How do we know?  What children would she produce if she were a homozygous HH woman?

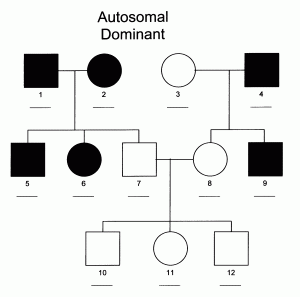

A pedigree caused by a dominant allele would look very different.  Every sufferer would have at least one parent who also suffers from the disease.  Two sufferers producing some children who do not have the disease is indicative of a disease caused by a dominant allele.  If we use the symbol P for the dominant allele that causes the disease, and p for the recessive allele that is “normal”, can you work out the genotypes of all 12 people on the diagram above?

  1. Pp
  2. Pp
  3. pp
  4. Pp
  5. PP or Pp
  6. PP or Pp
  7. pp
  8. pp
  9. Pp
  10. pp
  11. pp
  12. pp

A* Genetics: avoid a common error in understanding at iGCSE 3.16 3.17 3.18 3.20

There are one or two things which make a biology teacher’s (and indeed an exam marker’s) blood pressure rise.  Well in fact in my case there are many dozens of things, as some of you know, but let’s keep it to the things candidates write in genetics answers in exams.  This post is an attempt to encourage you to avoid the commonest “howler”.

The dominant allele does not have to be the more common one in a population.

Just because an allele is dominant, it does not mean it will be the most common in a population.  I often hear answers in which people think that in a population 3/4 of the population will have the dominant phenotype, 1/4 will be recessive.  This is utter nonsense of course.  The ratio of 3:1 only applies to the probabilities of offspring produced by mating two heterozygous individuals.

There is a gene in humans in which a mutation can cause polydactyly:  this rare condition results in babies born with an extra digit on each hand.  Anne Boleyn was a famous sufferer in the past.  But the allele of the gene that causes polydactyly is dominant – it is a P allele.  I would imagine everyone reading this post, (all 12 of you…..), will probably have the genotype pp.  The p allele that causes a normal hand to form is very very common in our population whereas the P allele is very very rare.

Don’t ever believe that just because an allele is common, it must be dominant.

How to score full marks on a genetics question in iGCSE Biology? 3.16 3.17 3.18 3.20

Few things in life are certain, famously just death and taxes.  Northampton Town flirting with relegation can perhaps be added to this list.  But you can be pretty certain that tucked away somewhere in your iGCSE Biology exam there will be a genetics question that asks you to draw a genetic diagram.  There are usually four or even five marks available and so learning how to ensure you get all these marks is vital in your quest for an A* grade.

GCSE candidates are terrible at doing genetic diagrams: they fill the space with messy scribbles, doodles, strange tables and lines and then confidently write 3:1 at the bottom… Not a recipe for success.  So learn how to do it, be neat, take your time and you can guarantee full marks.

If the question doesn’t do it for you, you should start by defining what the letters you will use for the alleles.  If one allele is dominant over the other, it is conventional to use the upper case letter for the dominant allele, the lower case letter for the recessive one.  It will tell you in the question which allele is dominant.

Start your genetic diagram by writing the phenotype of the parents in the cross.

e.g.          Parental Phenotype:             Tall                         Tall

Underneath the phenotype, write the genotype of the parents.

Parental Genotype:                Tt                            Tt

Then you need to think about which alleles are present in the gametes.  Gametes are haploid and so will contain one of each pair of homologous chromosomes – in this example there can only be one allele in each gamete (as we are only looking at one gene)

Gametes:           T               t                       T                   t

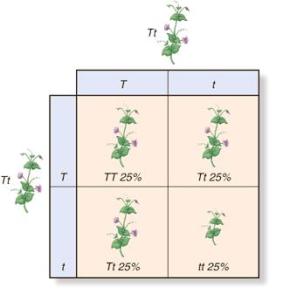

Next show random fertilisation.  I think it is much better to draw a Punnett square that has the male gametes down one side, the female gametes down the other and then carefully pair them up.  This is a stage where mistakes can be made if you rush so however simple you think this process is, take your time…..

Random Fertilisation


Finally you need to copy out the offspring genotypes from your Punnet square, like so

Offspring Genotypes:        TT            Tt              Tt             tt

And underneath each one, write the offspring phenotype

Offspring Phenotypes:       Tall           Tall            Tall           Dwarf

Finally, answer the question.  If it asks for a probability, express your answer as either a percentage or a decimal or a fraction.  So if I were asked what is the probability of a homozygous pea being produced, the answer is 50% or 0.5 or 1/2

Follow these rules and you will always score full marks – happy days……..

Genetics jargon: A* understanding for iGCSE 3.16 3.17

The science of genetics looks at how inherited characteristics are passed from one generation to the next.  The father of genetics was the Moravian monk, Gregor Mendel, who showed with his breeding experiments in peas that individual, discrete “particles” are passed from one generation to the next.  We now know that these “particles” are actually small sections of a DNA molecule called genes.

Mendel worked out that there were always two such “particles” in any cell which acted together to determine the feature described.  But he knew that gametes (sex cells such as pollen grains and egg cells) only contained one “particle” for each feature.  You should understand why this is.

The discrete particles that are passed from generation to generation are genes:  these are sections of a DNA molecule and are located on chromosomes.  Chromosomes in most organisms are found in pairs within the nucleus of a cell.  The word for a cell that contains pairs of homologous chromosomes is a diploid.  The gametes do not have pairs of chromosomes:  they are haploid cells that contain one member of each pair.  This ensures that at fertilisation when two gametes fuse, a diploid zygote is produced.

iGCSE candidates can find genetics a difficult topic and one reason is that there is lots of jargon.  Have a look at my definitions for these jargon words and ensure that you understand what they mean.  Genetics is not a topic in which rote learning and memorisation are helpful – the very top candidates at iGCSE will understand what is going on, and can then answer all possible questions with ease.

Gene: ” a section of a DNA molecule that codes for a single protein”

Allele: “an alternative version of a gene found at the same gene locus”

Gene locus: “the place on a chromosome where a particular gene is found”

Phenotype: “the appearance of an organism, e.g tall, short, blue eyes etc.”

Genotype: “the combination of alleles at a single gene locus that an organism possesses – e.g TT, Tt”

Homozygous: “a gene locus where the two alleles are identical is said to be homozygous – e.g. TT, tt”

Heterozygous: “a gene locus where the two alleles are different is heterozygous – e.g. Tt”

Dominant allele: “a dominant allele is the one that determines the phenotype in a heterozygous individual”

Recessive allele: ” a recessive allele can only determine the phenotype in a homozygous individual”

Codominance: “two alleles are codominant if they both contribute to the phenotype in a heterozygous individual”
